Liveness Analysis

活跃变量分析属于数据流分析的一种,在寄存器分配和代码优化等方面有广泛应用。

Dataflow Analysis

数据流分析是一种在不实际运行程序的情况下,推断程序动态行为信息的方法。它通过分析程序的中间表示(IR),如控制流图(CFG),来收集“Dataflow facts”,例如变量的Liveness、type等。这些事实对于编译器优化、程序验证等都至关重要。

Compiler Optimization

粒度

  • Local :在单个 basic block 内优化,或者多个 blocks 但是不能是整个 procedure
  • Intraprocedural (or “global’) :在 整个 procedure 内进行优化
  • Interprocedural (or “whole-program”) :在 >1 个 procedure 甚至整个 program 内优化;有时会在link time进行优化

无论优化粒度如何,编译器优化通常遵循两个步骤:

  • Analyze program to gather “facts” :在 program 的 IR 上执行 “Program analysis”,收集到的 fact 例:

image-20250528112940170

  • Apply transformation (e.g., optimizations) :根据收集到的 fact 进行优化,例如:Constant folding, dead code elimination... & Loop-invariant code motion, register allocation,…

在不同的优化粒度范围,编译器会使用不同的中间表示,例如 Local 时使用 dependence graph;Intraprocedural (or global) 时使用 control-flow graph for dataflow analysis ;Interprocedural (or who-program) 时使用 Call graph, ICFG, SDG

Dataflow Analysis

Control Flow Graph :有向图,表示程序的控制流程

  • Nodes:represent statements
  • Edges:represent control flow

基本块:a sequence of instructions with unique entry and exit。在活跃变量分析中,每个basic block都只有一个 statement(single-statement basic blocks)。

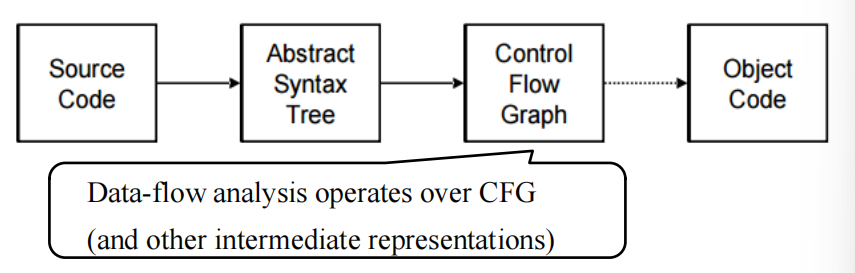

Dataflow Analysis:A framework for deriving information about the dynamic behavior of a program without running it.

image-20250528182956974

Liveness Analysis

为什么要有 Liveness analysis?

  • 在指令选择后的 low level IR 上,我们假设 “abstract registers” ,导致了 infinite variables
  • 在 register allocation 时,我们需要将 infinite variables 放进 finite machine registers,这就需要Liveness analysis

Live Variables

变量 x live at statement s if:

  • There exists a statement s’ that uses x
  • There is a path from s to s’
  • That path has no intervening assignment/definition to x(这条路径上没有对 x 的赋值(定义))

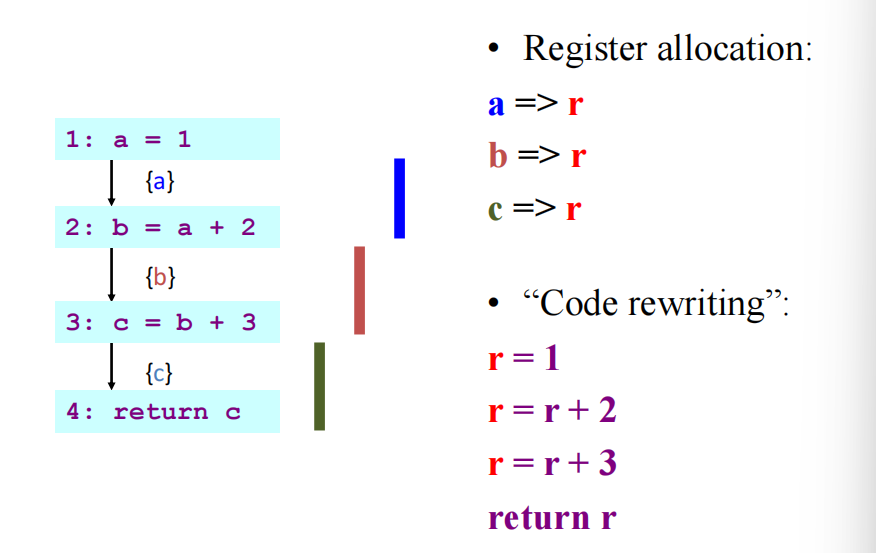

例:假设只有一个 register

image-20250528183815823

Dataflow Equations for Liveness

前置知识

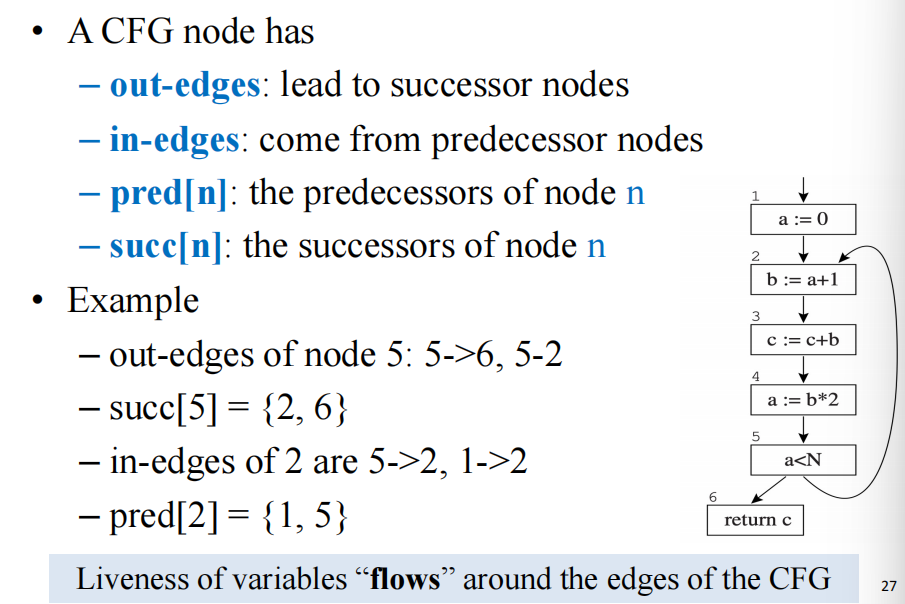

CFG 相关概念:

image-20250528184034890

framework: 为了计算 “dataflow facts” ,对于每个 CFG node,定义 local equations :

  • in[n] : facts that are true on all in-edges to the node
  • out[n] : facts true on all out-edges
  • transfer functions :transfer information from one node to another

将方程求解(一般是迭代),直到到达不动点。

相关定义

接着回到 Liveness Analysis ,对每个 node n in the flow graph,定义:

  • Def(n) : Set of variables defined at n ,只要 variable 在赋值语句左边就算定义
  • use(n) : Set of variables used at n

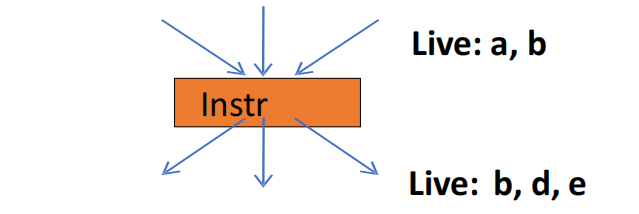

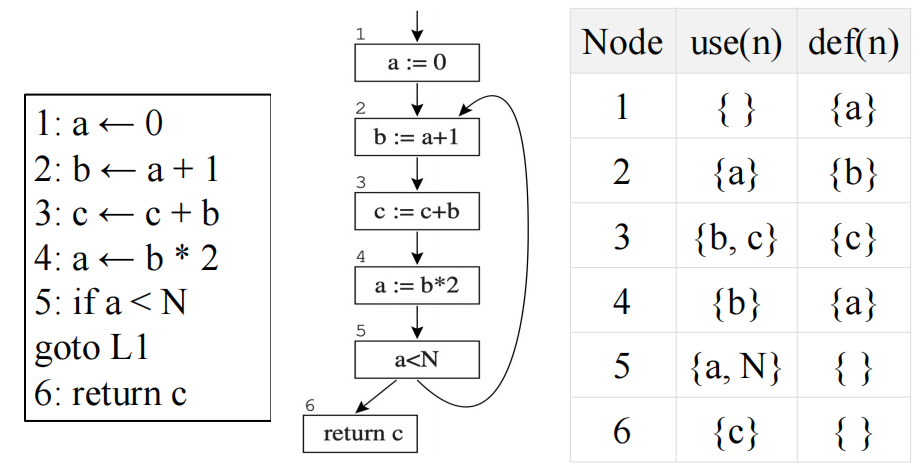

image-20250528185420021

变量 live on an edge : 从该 edge 出发,有一条有向路径指向 a use of the variable that does not go through any def. (指向use(n)的有向路径上经过的结点无 def (v))

  • Live-in : a variable is live-in at a node if it is live on any of the in-edges of that node
  • Live-out: A variable is live-out at a node if it is live on any of the out-edges of the node

由此可定义:

  • in[n] : the live-in set of node n
  • out[n] : the live-out set of node n

image-20250528190913117

计算规则

Rule 1 :If a ∊ in[n], then for ∀m ∊ pred[n], a ∊ out[m] (也就是说,如果变量 a live in node n ,那么其 live out at pred[n] 中所有nodes)Rule 2 : If a ∊ use[n], then a ∊ in[n] (如果变量在 n 中被使用而非被定义,那么它 live-in at n) Rule 3 : If a ∊ out[n] and a ∉ def[n], then a ∊ in[n] (变量没有在n中被定义,但是又属于 out[n],那肯定就从 in[n] 里进来的)

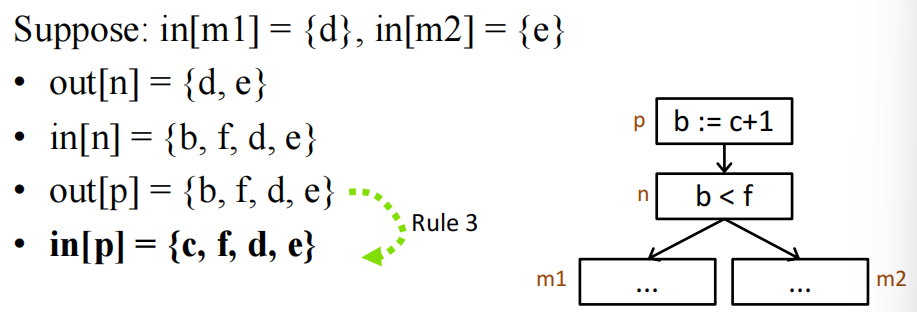

image-20250528204043729

  • 运用 rule 1 ,得到 out[n] = {d, e}
  • 因为Use(n) = {b, f},由 rule 2 得到 in[n] = {b, f}
  • 又因为 out[n] = {d, e} 且d,e在node n中未被定义,所以 in[n] = {b, f, d, e}
  • 运用 rule 1, 得 out[p] = {b, f, d, e}
  • 最后由rule 3 得 in[p] = {c, f, d, e}

综上,我们得到 in & out 的公式:

in[n] = use[n] ∪ (out[n] - def[n])

out[n] = ssucc[n]in[s]

Solving the Equations

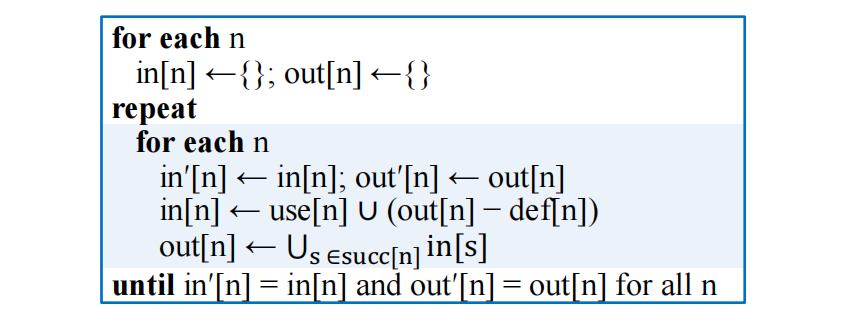

通过迭代算法求解,直到达到不动点(fixed point),即所有 in[n] 和 out[n] 集合不再发生变化。

image-20250528205032607

Step 1 : 将所有 in[n]out[n] 集合初始化为空集。

Step 2 : 保存当前 in[n]out[n] 的副本(in'[n]out'[n])。对于每个节点 n,根据上述数据流方程计算新的 in[n]out[n]由于活跃变量分析是反向流动的,从控制流的相反顺序(从程序出口到入口)计算会更快收敛。

Step 3 : 当所有 in[n]out[n] 集合在一次迭代中都没有发生变化时,算法停止。

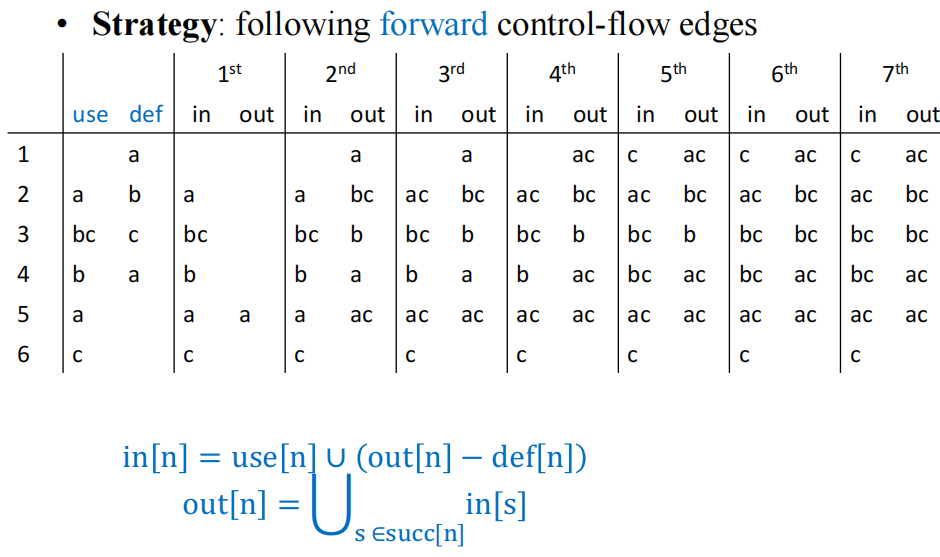

例:正向算很慢

image-20250528205324472

image-20250528205414389

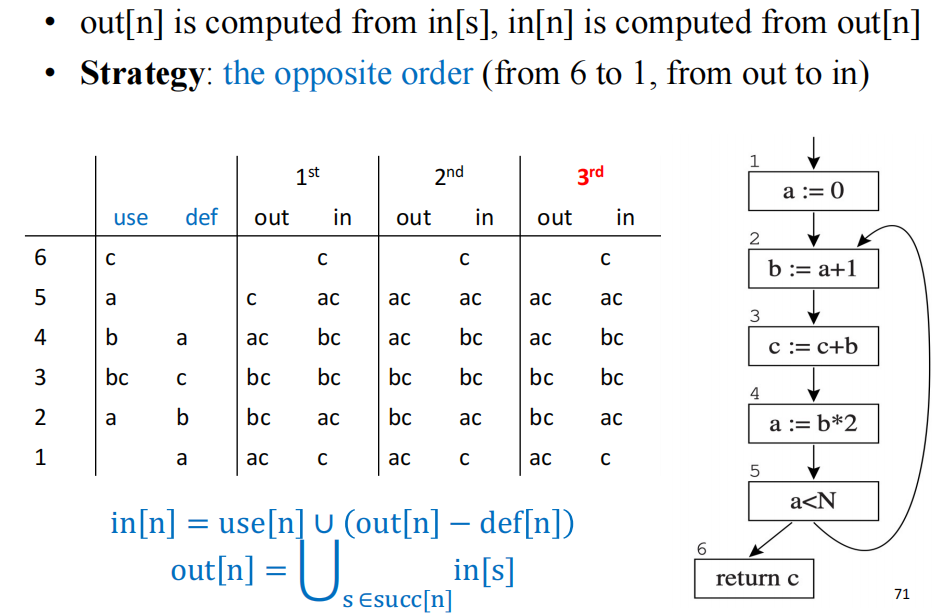

反向算,速度增快(算一个 in,再算一个 out,接着再算in,如此交替):

image-20250528205518007

More Discussions

Improvements

可做如下改进来优化迭代计算过程:

  • Ordering the nodes :按照控制流的反向顺序(例如,从程序出口到入口)进行计算,可以更快地收敛。

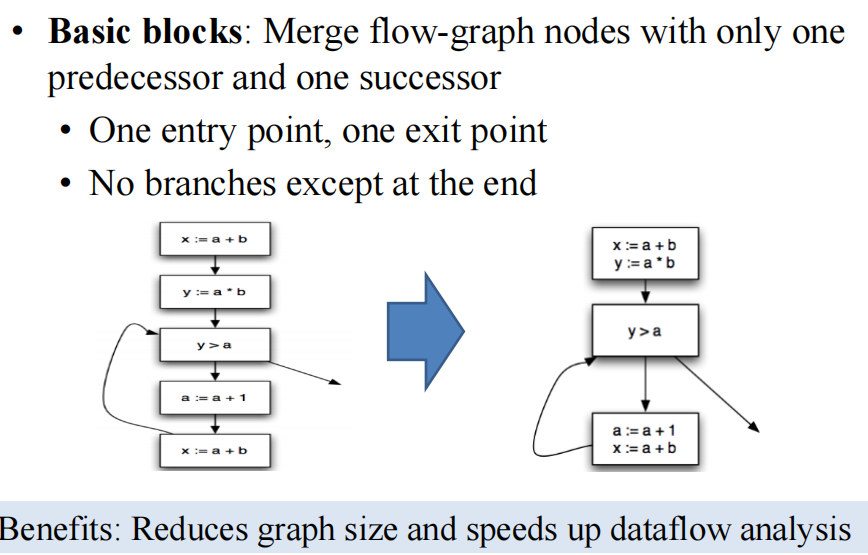

  • Use variants of Control-flow graph (CFG) :例如,使用基本块作为CFG的节点,可以减少图的大小,从而加速数据流分析。
  • Once a variable:逐个变量计算其活跃性,对于生命周期很短的临时变量尤其有效。
  • Careful selection of set representation
  • 位数组(Bit Arrays) :当变量数量不多且集合密集时(大部分变量都活跃),使用位数组表示集合效率更高。集合的并集和差集操作可以通过位运算快速完成。
  • 排序列表(Sorted Lists) :当变量数量很多但集合稀疏时(只有少数变量活跃),使用排序列表表示集合效率更高。
  • Use other intermediate representation (IR)

如:

image-20250528210007037

Theoretical Results

时间复杂度:对于一个大小为 N 的程序(最多 N 个节点和 N 个变量),每次set-union operation的时间复杂度为 O(N)。最坏情况下,迭代算法的时间复杂度为 O(N^4)。但在实际应用中,由于合适的计算顺序,通常在 O(N)O(N^2) 之间。

最小不动点(Least Fixed Point):活跃变量的数据流方程可能有多个解。但迭代算法总是能计算出最小不动点,这个解是所有其他解的子集。这意味着它提供了最精确的过近似。

Static vs. Dynamic Liveness

  • 静态活跃性(Static Liveness)(过近似):一个变量 a 在节点 n 处是静态活跃的 --如果存在从 na 的某个使用点的一条控制流路径,且该路径上没有对 a 的定义。这是编译器在编译时可以确定的活跃性。
  • 动态活跃性(Dynamic Liveness)(欠近似):一个变量 a 在节点 n 处是动态活跃的 -- 如果程序的某个执行路径na 的使用点,且该路径上没有对 a 的定义。这是程序实际运行时才能确定的活跃性,通常难以精确计算。

重要关系:如果一个变量是动态活跃的,那么它也一定是静态活跃的。
