ch4 -Abstract Syntax

编程语言 = 语法 + 语义

  • 语法: What sequences of characters are valid programs?
  • 语义: What is the behavior of a valid programs?

Abstract Syntax 用于衔接语法和语义部分(抽象语法树)

1. Attribute Grammar

该部分内容 不要求掌握,为前置内容.

属性文法: 上下文无关语法+属性+属性计算规则.

  • 属性: 描述文法符号的语义特征,如变量类型、值. 例: 非终结符E的属性E.val(表达式的值)
  • 属性计算规则(语义规则): 与产生式相关联、反映文法符号属性间关系的规则, 比如”如何计算E.val”

潜在应用:

  • 推导类--程序分析

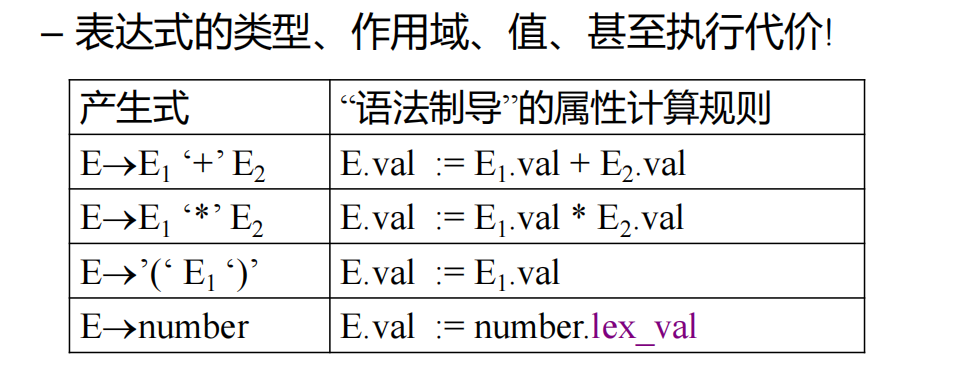

image-20250412161719889

  • 生成类--程序合成

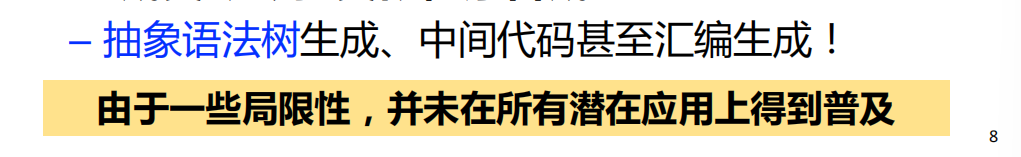

image-20250412161733052

2. Semantic Action

语义动作可应用于构造AST.

每一个 terminal 和 nonterminal 都有 its own type of semantic value,当存在 rule :ABCD 时,semantic action 必须返回与 nonterminal A 的 type 一致的一个 value,该value可从 B,C,D 的 values 得到。

例:

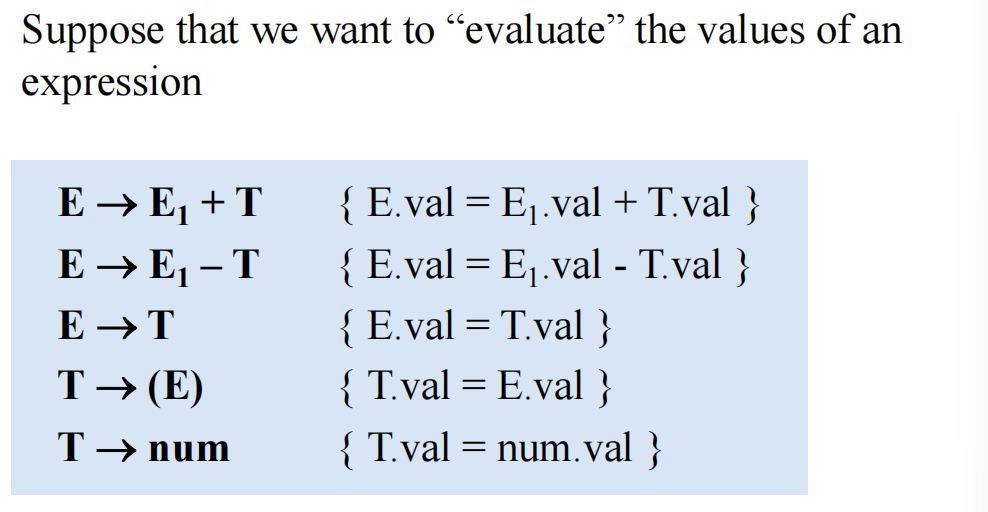

image-20250412162942470

所以,semantic action 定义如下:

  • the values returned by parsing functions,
  • or the side effects of those functions
  • or both

Semantic Actions in Yacc-Generated Parsers:

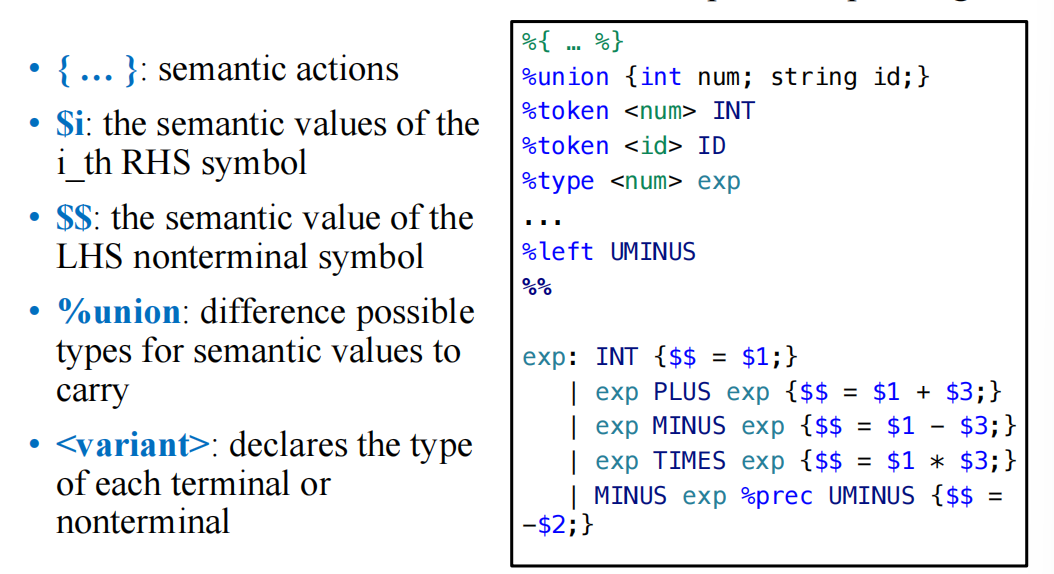

image-20250412163222397

2.1 Abstract syntax tree

2.1.1 定义

AST是 Parse Tree 的一个保留核心细节的化简版本, 被输入进语义分析部分. 所以在Parsing过程中还需要生成AST.

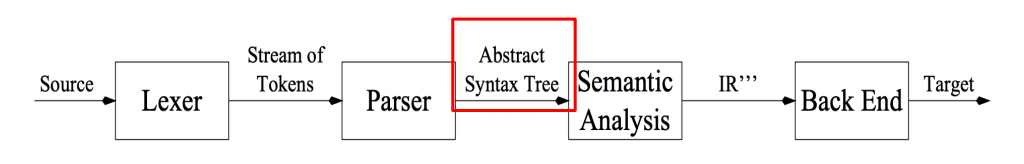

image-20250412163732448

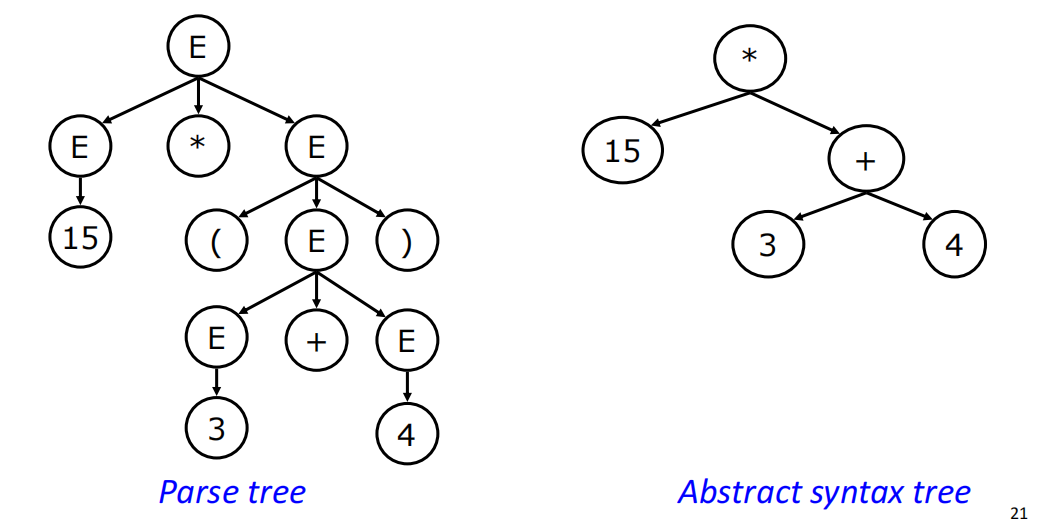

其中,Parse trees encodes the grammatical structure of the source,但携带了很多不必要的信息(Redundant and useless tokens for later phases、太依赖语法),编译器只需要知道 expression 的operators 和 operands 就可以了。

image-20250412164128238

应用:

  • Applications inside compilers
  • Semantic analysis , e.g., type checking
  • Translation to in termediate representations
  • Some high-level optimizations, e.g., constant fold
  • Applications outside compilers
  • Pretty print, code editing, code diff, etc.
  • “Advanced” analysis tools (e.g., Clang Static Analyzer)

2.1.2 表示

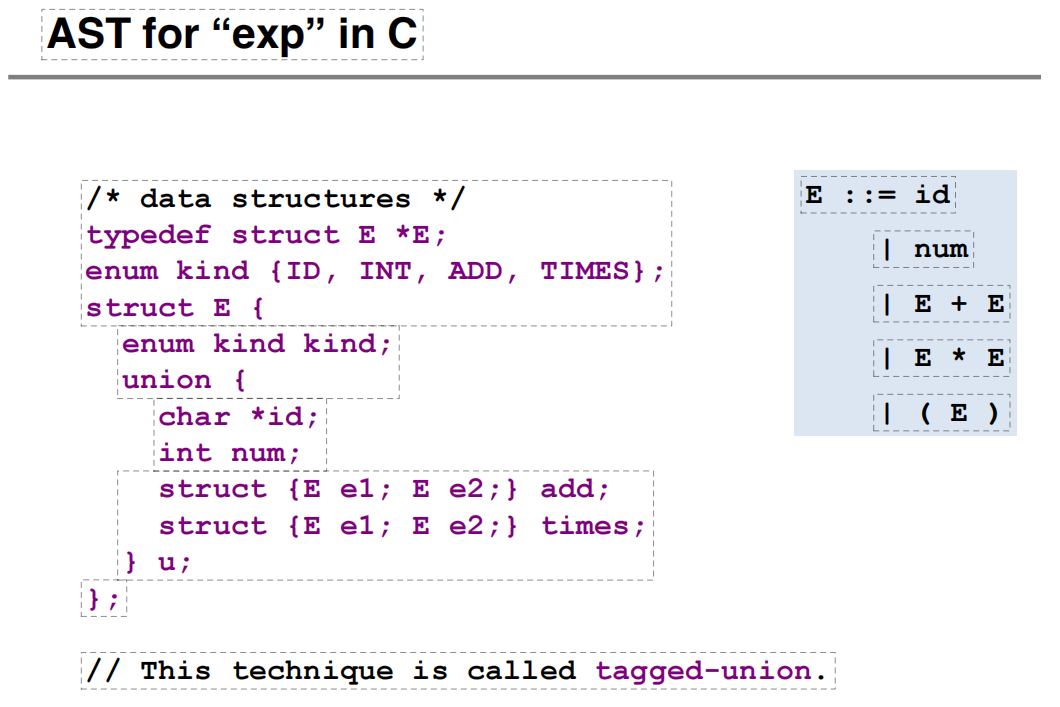

image-20250412165316561

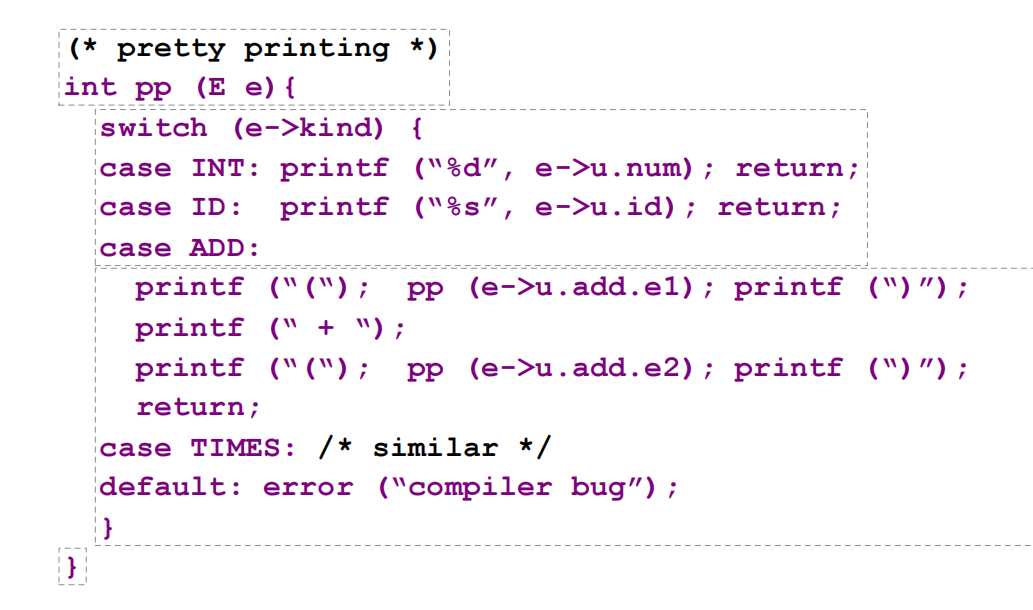

image-20250412165517582

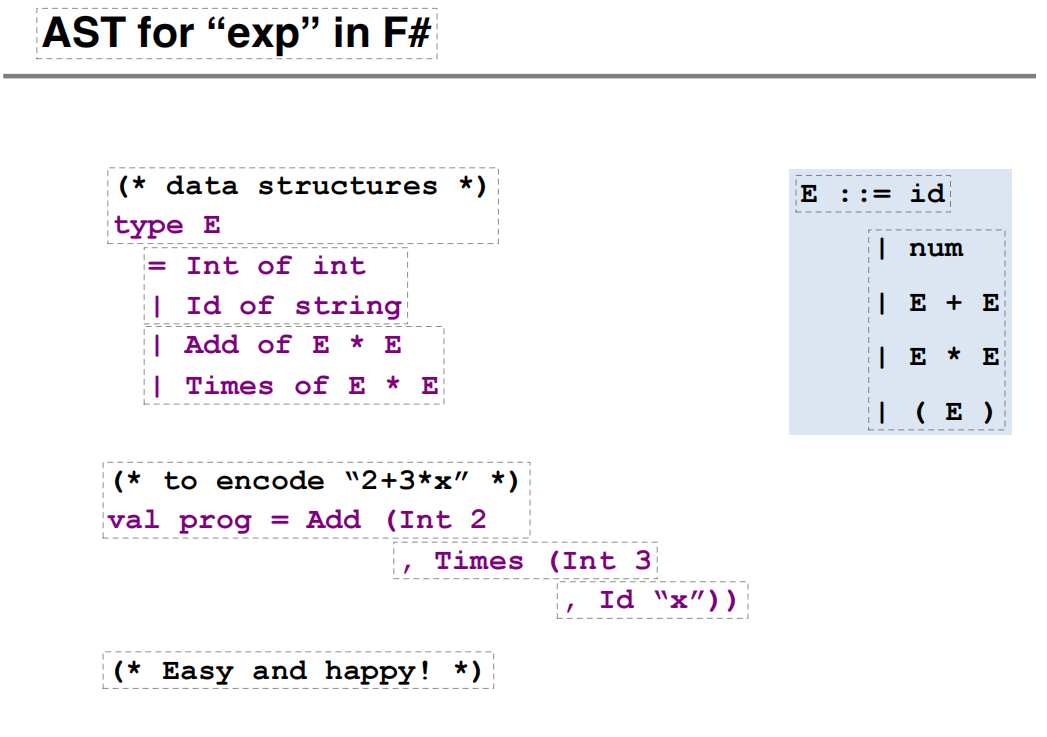

image-20250412165542078

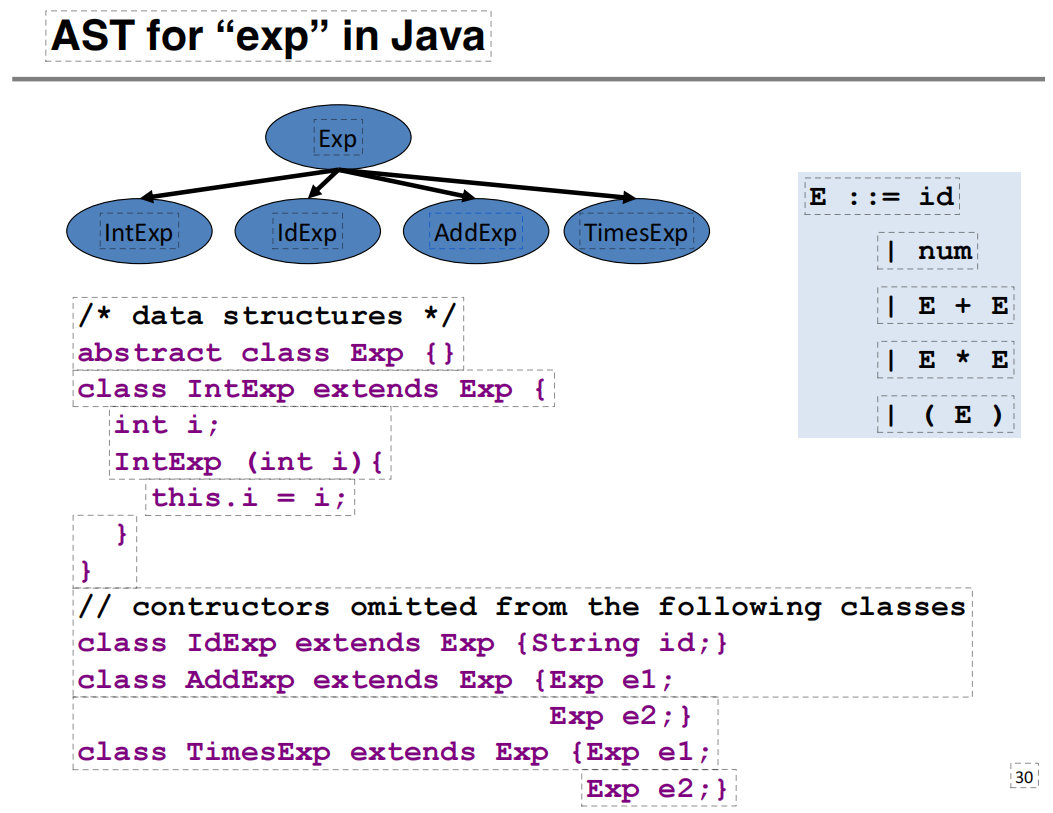

image-20250412165555020

构造: 通过semantic actions

C语言实现细节不会考()

2.1.3 生成

Top-down -- C和Java实现,应该不会考

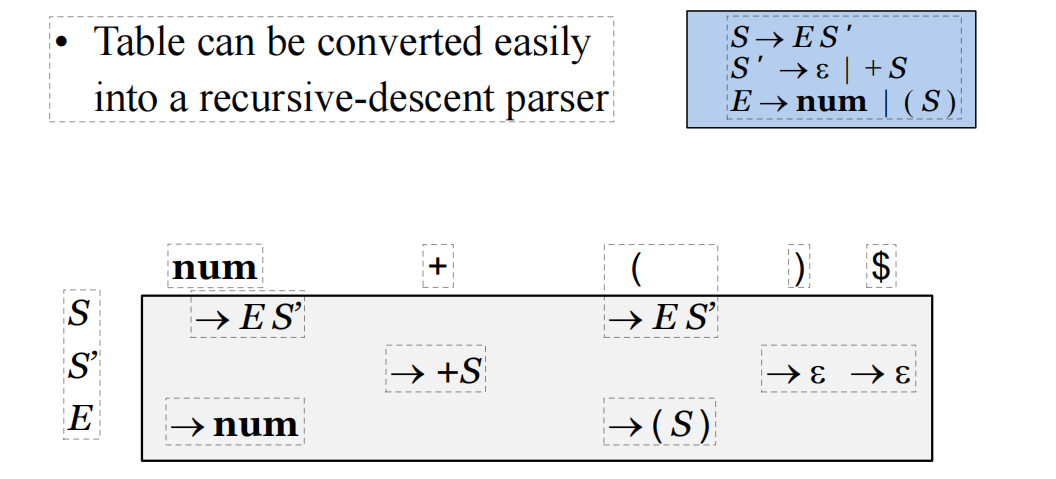

递归下降,手写

image-20250412165819684

C语言:

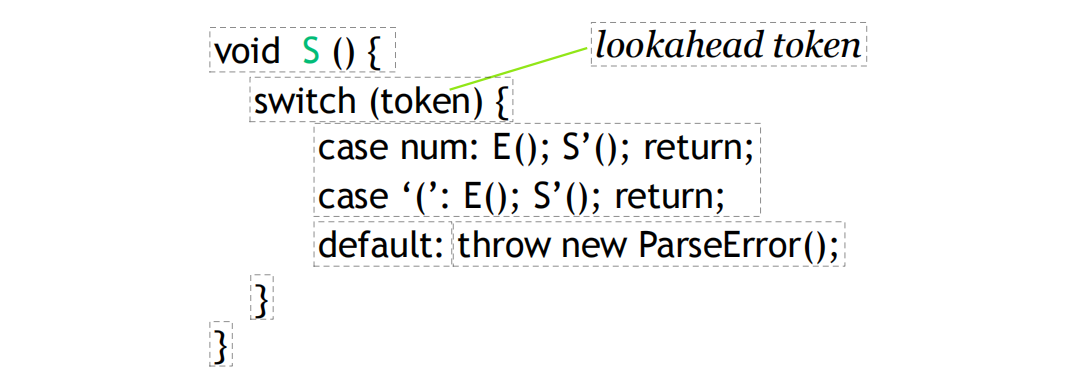

image-20250412170349343

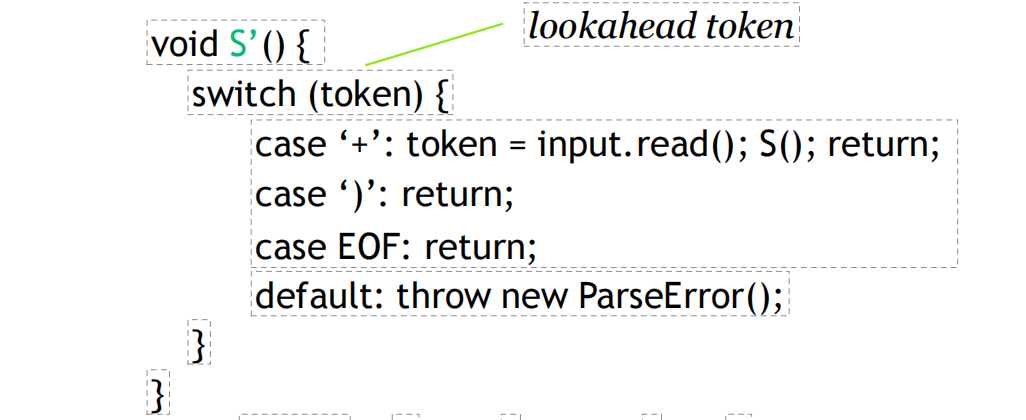

image-20250412170424778

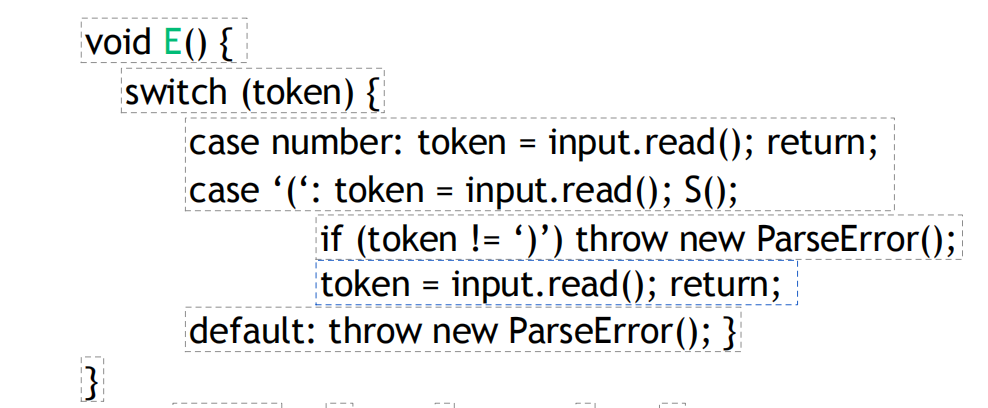

image-20250412170453121

Java可以边构造边打印。

Bottom-Up -- Yacc 会考含义

image-20250412171131786
